| 型号 | 外部尺寸 [mm] |
频率 [MHz] |
频率温度特征 | 电源电压 Typ.[V] |
输出 | 相位 抖动 [ps] |
目录 | |
|---|---|---|---|---|---|---|---|---|
| 频率公差 [ppm]Max. |
工作温度 [°C] |
|||||||
EA-2102CB |
5.0x3.2x1.35 | 100 | ±100 | -40 to +80 | 3.3 | LV PECL | 1 |  324KB |
| XG-1000CA | 7.0x5.0x1.2 | 50 to 170 | ±50 /±100 |
-10 to +70 |
1.8 / 2.5 / 3.3 | CMOS | 1 | 333KB |
| XG-1000CB |
5.0x3.2x1.1 | |||||||
| EG-2021CA |
7.0x5.0x1.2 | 62.5 to 250 | ±50 /±100 |
0 to +70 -5 to +85 |
2.5 | CMOS | 1 | 283KB |
| EG-2001CA | 106.25 to 170 | ±50 /±100 | 0 to +70 |
3.3 | ||||
| EG-2002CA | 7.0x5.0x1.2 | 62.5 to 170 | ±50 /±100 |
0 to +70 |
3.3 | LV-TTL | 1 | 281KB |

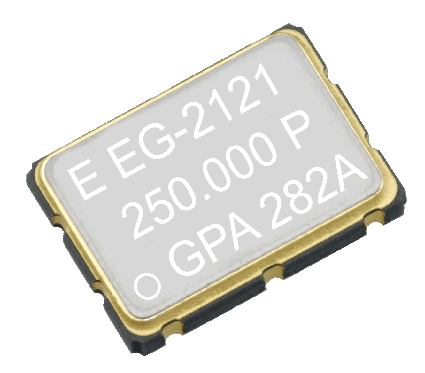

| EG-2121CB | 5.0x3.2x1.4 | 100 to 700 |
±50 /±100 |
0 to +70 -5 to +85 -20 to +70 |
2.5 | LV PECL | 0.3 0.2 0.1 |
320KB |
| LVDS | ||||||||
| EG-2102CB | 100 to 700 | 3.3 | LV PECL | |||||
| LVDS | ||||||||
 EG-2123CB |
5.0x3.2x1.4 | 100 to 700 |
±100 |
0 to +70 -5 to +85 -20 to +70 |
2.5 | LV PECL | 0.3 0.2 0.1 |
320KB |
| LVDS | ||||||||
EG-2103CB |
100 to 700 | 3.3 | LV PECL | |||||
| LVDS | ||||||||
XG5032HAN |
5.0x3.2x1.4 | 100 to 200 | ±50 /±100 | 0 to +70 -5 to +85 -20 to +70 |
2.5 / 3.3 | HCSL | 0.3 | 501KB |
| XG-2121CA | 7.0x5.0x1.2 | 100 to 700 | ±50 /±100 | 0 to +70 -5 to +85 -20 to +70 |
2.5 | LV-PECL | 0.3 0.2 0.1 |
269KB |
| LVDS | ||||||||
| XG-2102CA | 100 to 700 | 3.3 | LV-PECL | |||||
| LVDS | ||||||||
XG-2123CA |
7.0x5.0x1.2 | 100 to 700 | ±100 | 0 to +70 -5 to +85 -20 to +70 |
2.5 | LV-PECL | 0.3 0.2 0.1 |
630KB |
| LVDS | ||||||||
XG-2103CA |
100 to 700 | 3.3 | LV-PECL | |||||
| LVDS | ||||||||
| EG-2121CA | 7.0x5.0x1.2 | 53.125 to 500 | ±50 /±100 | 0 to +70 -5 to +85 -20 to +70 |
2.5 | LV-PECL | 1 | 304KB |
| 53.125 to 700 | LVDS | |||||||
| 100 to 350 | HCSL | |||||||
| EG-2102CA | 100 to 700 | 3.3 | LV-PECL | |||||
| 53.125 to 700 | LVDS | |||||||
| 100 to 350 | HCSL | |||||||
| EG-2101CA | 7.0x5.0x1.2 | 62.5 to 99.999 | ±50 /±100 |
-20 to +70 |
3.3 | LV-PECL | 1 | 279KB |
| EG-4121CA | 7.0x5.0x1.2 | 100 to 700 | ±50 | -40 to +85 | 2.5 | LV-PECL | 1 | 373KB |
